A proximity switch is a position sensor that can detect the presence of obiects without direct contact, it is widely used in various industrial automation and control systems for control the movement of mechanical equipment, monitoring the position of items on the production line, counting, etc, Proximity switches can provide fast and reliable detection functions, and as they do not require physical contact, they can reduce wear and tear damage, extend service life. Proximity switches can be mainly divided into the following categories based on their working principles:
1. inductive proximity switch: detects obiects by utilizing their influence on the electromagnetic field. When a metal object approaches, it will change the electromagnetic field around the switch, triggering the switch action, This type of proximity switches are commonly used to detect metal obiects.
2. Capacitive proximity switch: achieves detection by detecting the influence of objects on the electric field. when an object approaches, it will change the capacitance between the two plates of the capacitor, triggering the switch. Capacitive approach the switch can be used to detect both metallic and non-metallic objects.
3. Hall type proximity switch: a device that identifies objects approaching by detecting changes in magnetic fields. When a magnetic object approaches a sensor, it changes the magnetic field around the sensor. Due to the changes in the magnetic field. A voltage diference is generated on both sides of the hall sensor, and the Hall voltage is converted into an electronic signal. This type of proximity switch is usually used to detect magnetic objects.
| Model | LMF2 | |||

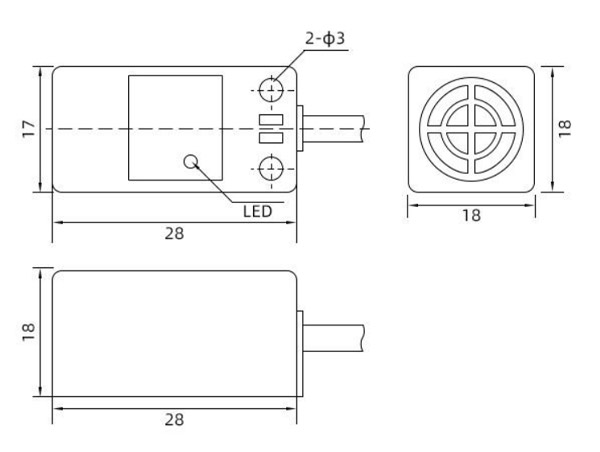

| Dimension |  |
|||
| Sense distance | 5mm±10% | |||
| Flush type | DC10~30VDC | NPN | NO | LMF2-3005NA |
| NC | LMF2-3005NB | |||
| NO+NC | LMF2-3005NC | |||
| PNP | NO | LMF2-3005PA | ||
| NC | LMF2-3005PB | |||
| NO+NC | LMF2-3005PC | |||
| Two-wire system | NO | LMF2-3005LA | ||
| NC | LMF2-3005LB | |||
| AC90~250VAC | NO | LMF2-3005A | ||
| NC | LMF2-3005B | |||
| NO+NC | LMF2-3005C | |||
| Output current | DC | 200mA | ||
| AC | 300mA | |||
| Output voltage peak | DC type below 3V、Two wire type below 3.9V、 AC below l0V DC<3V, AC<10V | |||
| Consumption current | DC type 8mA at 12V, 15mA at 24V, AC below 10mA DC<15mA, AC<10mA | |||
| Standard detected object | 20×20×1 (A3 iron) | |||
| Repeatability | 0.02 | |||
| Response frequency | 400Hz/25Hz | |||
| Ambient temperature | -25℃-+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
