Industrial grade light barrier sensor can work in harsh industrial environments with fast response time, processing signals in milliseconds and issuing safety warnings or triggering emergency shutdowns in a timely manner.
Quick response
Shock resistance
Strong anti-interference
High-quality aluminum material
Long service life
Convenient installation
| Protection height | 60-2000mm (conventional) | Working environment temperature | -10~55℃ |
| Beam pitch | 5mm/10mm/20mm/40mm | Working environment humidity | Relative humidity <85% at a temperature of 20℃ |
| Resolving power | 10mm/15mm/25mm/45mm | Output current | ≤200mA |
| Number of optical axes | 4,6,8,10....... | Power | <5W |
| Working voltage | DC24V±20% | Anti light interference | 10000Lux (incidence angle l>5 degrees) |
| lnsulation resistance | ≥100MΩ | Dielectric strength | ACI500V.60S. No breakdown or flashing |
| Response time | <10ms | Section size | 35*35mm |
| Protection distance | 0.1-2000mm | Shell protection level | IP65 |
| Output method | NPN or PNP (conventional) / Relay NO /Relay NC (can be selected according to demand) | ||

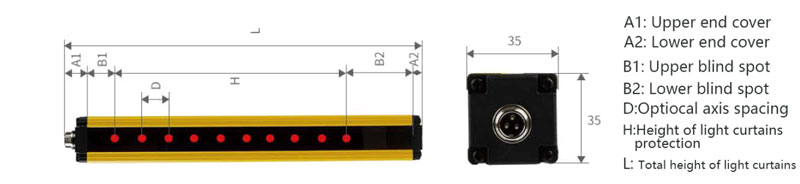

| Optical axis spacing (20mm) | Optical axis spacing (40mm) | ||||||
| Number of beams (n) |
Protection height (mm) |
Total height of light curtain (mm) |

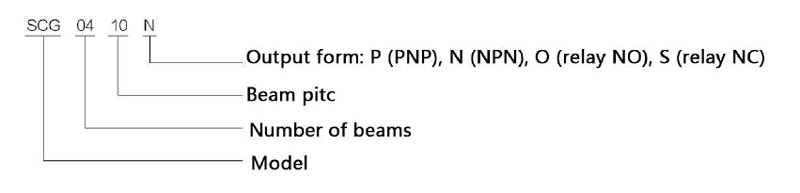

Specification model | Number of beams (n) |
Protection height (mm) |
Total height of light curtain (mm) |
Specification model |
| 4 | 60 | 127 | SCG-0420N | 4 | 120 | 207 | SCG-0440N |
| 6 | 100 | 167 | SCG-0620N | 6 | 200 | 287 | SCG-0640N |
| 8 | 140 | 207 | SCG-0820N | 8 | 280 | 367 | SCG-0840N |
| 10 | 180 | 247 | SCG-1020N | 10 | 360 | 447 | SCG-1040N |
| 12 | 220 | 287 | SCG-1220N | 12 | 440 | 527 | SCG-1240N |
| 14 | 260 | 327 | SCG-1420N | 14 | 520 | 607 | SCG-1440N |
| 16 | 300 | 367 | SCG-1620N | 16 | 600 | 687 | SCG-1640N |
| 18 | 340 | 407 | SCG-1820N | 18 | 680 | 767 | SCG-1840N |
| 20 | 380 | 447 | SCG-2020N | 20 | 760 | 847 | SCG-2040N |
| 22 | 420 | 487 | SCG-2220N | 22 | 840 | 927 | SCG-2240N |
| 24 | 460 | 527 | SCG-2420N | 24 | 920 | 1007 | SCG-2440N |
| 26 | 500 | 567 | SCG-2620N | 26 | 1000 | 1087 | SCG-2640N |
| 28 | 540 | 607 | SCG-2820N | 28 | 1080 | 1167 | SCG-2840N |
| 30 | 580 | 647 | SCG-3020N | 30 | 1160 | 1247 | SCG-3040N |
| 32 | 620 | 687 | SCG-3220N | 32 | 1240 | 1327 | SCG-3240N |
| 34 | 660 | 727 | SCG-3420N | 34 | 1320 | 1407 | SCG-3440N |
| 36 | 70 | 767 | SCG-3620N | 36 | 1400 | 1487 | SCG-3640N |
| 38 | 740 | 807 | SCG-3820N | 38 | 1480 | 1567 | SCG-3840N |
| 40 | 780 | 847 | SCG-4020N | 40 | 1560 | 1647 | SCG-4040N |
| 42 | 820 | 887 | SCG-4220N | 42 | 4640 | 1734 | SCG-4240N |
| 44 | 860 | 927 | SCG-4420N | 44 | 1720 | 1814 | SCG-4440N |
| ... | ... | ... | ... | ... | ... | ... | ... |
| 100 | 1980 | 1047 | SCG-10020N | 50 | 1960 | 2047 | SCG-5040N |
| Img | Name | Dimensional drawing (unit: mm) |
 |
Side Mounting Bracket (included in a set) |
 |
 |
Cantilever Bracket (additional option) |
 |
 |
Integral Cantilever Bracket (additional option) |
 |
