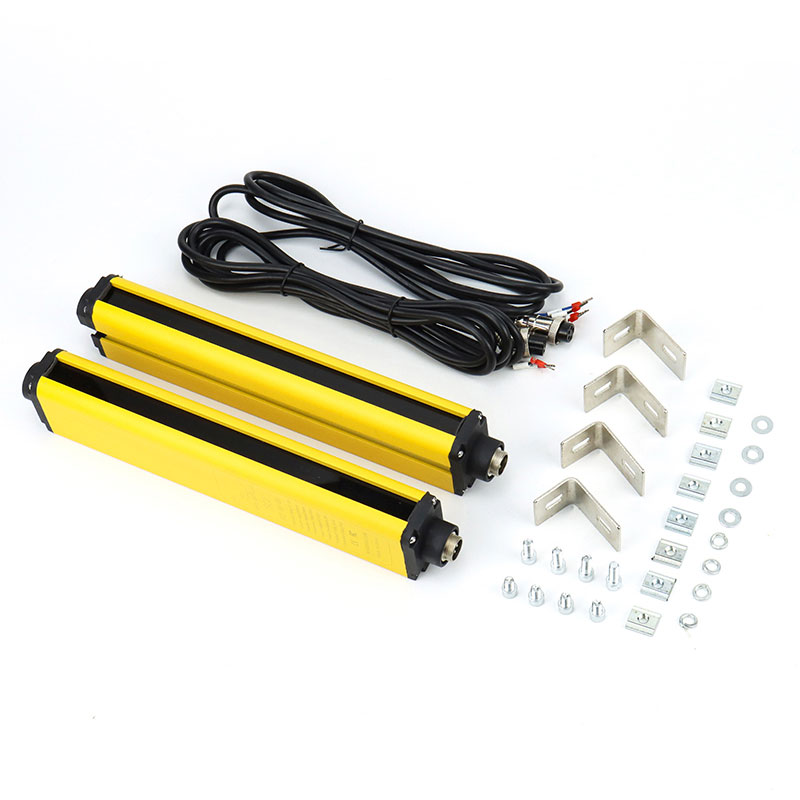

Rugged Type Light Curtain Sensor is designed with ruggedized housings and structures that are capable of operating for long periods of time under harsh conditions. It is characterized by high durability, wide operating temperature range, high anti-interference, high safety level and flexible application.

FEATURES

Quick response

Shock resistance

Strong anti-interference

High-quality aluminum material

Long service life

Convenient installation

SEND US YOUR MESSAGE
Video
Model description





Product Specifications



Protection height 60-2000mm (conventional) Working environment temperature -10~55℃
Beam pitch 5mm/10mm/20mm/40mm Working environment humidity Relative humidity <85% at a temperature of 20℃
Resolving power 10mm/15mm/25mm/45mm Output current ≤200mA
Number of optical axes 4,6,8,10....... Power <5W
Working voltage DC24V±20% Anti light interference 10000Lux (incidence angle l>5 degrees)
lnsulation resistance ≥100MΩ Dielectric strength ACI500V.60S. No breakdown or flashing
Response time <10ms Section size 35*50mm
Protection distance 0.1-2000mm Shell protection level IP65
Output method NPN or PNP (conventional) / Relay NO /Relay NC (can be selected according to demand)







Optical axis spacing (20mm) Optical axis spacing (40mm)
Number of beams
(n)		 Protection height
(mm)		 Total height of
light curtain
(mm)		 Specification model Number of beams
(n)		 Protection height
(mm)		 Total height of
light curtain
(mm)		 Specification model
4 60 133 SCF-0420N 4 120 213 SCF-0440N
6 100 173 SCF-0620N 6 200 293 SCF-0640N
8 140 213 SCF-0820N 8 280 373 SCF-0840N
10 180 253 SCF-1020N 10 360 453 SCF-1040N
12 220 297 SCF-1220N 12 440 533 SCF-1240N
14 260 337 SCF-1420N 14 520 613 SCF-1440N
16 300 373 SCF-1620N 16 600 693 SCF-1640N
18 340 413 SCF-1820N 18 680 773 SCF-1840N
20 380 453 SCF-2020N 20 760 853 SCF-2040N
22 420 493 SCF-2220N 22 840 953 SCF-2240N
24 460 537 SCF-2420N 24 920 1013 SCF-2440N
26 500 573 SCF-2620N 26 1000 1093 SCF-2640N
28 540 613 SCF-2820N 28 1080 1173 SCF-2840N
30 580 653 SCF-3020N 30 1160 1253 SCF-3040N
32 620 693 SCF-3220N 32 1240 1333 SCF-3240N
34 660 733 SCF-3420N 34 1320 1413 SCF-3440N
36 70 773 SCF-3620N 36 1400 1493 SCF-3640N
38 740 813 SCF-3820N 38 1480 1573 SCF-3840N
40 780 853 SCF-4020N 40 1560 1653 SCF-4040N
42 820 893 SCF-4220N 42 4640 1743 SCF-4240N
44 860 933 SCF-4420N 44 1720 1823 SCF-4440N
... ... ... ... ... ... ... ...
100 1980 2093 SCF-10020N 50 1960 2053 SCF-5040N





Bracket size



Img Name Dimensional drawing (unit: mm)
Side Mounting Bracket
(included in a set)
Cantilever Bracket
(additional option)
Integral Cantilever Bracket
(additional option)
