This light curtain sensor is a relay output with an optical axis spacing of 20mm and 40mm and is suitable for protecting objects such as hands.

FEATURES

Quick response

Shock resistance

Strong anti-interference

High-quality aluminum material

Long service life

Convenient installation

SEND US YOUR MESSAGE
Video
Model meaning





Product Specifications



Protection height 60-2000mm (conventional) Working environment temperature -10~55℃
Beam pitch 5mm/10mm/20mm/40mm Working environment humidity 35%-85%
Resolving power 10mm/15mm/25mm/45mm Output current ≤200mA
Number of optical axes 4,-60 Power <5W
Working voltage 10-30VDC Anti light interference 10000Lux (incidence angle l>5 degrees)
lnsulation resistance ≥100MΩ Dielectric strength ACl500V.60S. No breakdown or flashing
Response time Relay <50ms Transistor<20ms Section size 29*35mm
Protection distance 0.1-2000mm Shell protection level IP65
Output method Relay Transistor(NPN NPP)





Optical axis spacing (20mm) Optical axis spacing (40mm)
Number of beams
(n)		 Protection height
(mm)		 Total height of
light curtain
(mm)		 Specification model Number of beams
(n)		 Protection height
(mm)		 Total height of
light curtain
(mm)		 Specification model
4 60 120 GM-04-20J 4 120 180 GM-04-40J
6 100 170 GM-06-20J 6 200 270 GM-06-40J
8 140 210 GM-08-20J 8 280 350 GM-08-40J
10 180 250 GM-10-20J 10 360 420 GM-10-40J
12 220 290 GM-12-20J 12 440 510 GM-12-40J
14 260 330 GM-14-20J 14 520 590 GM-14-40J
16 300 370 GM-16-20J 16 600 670 GM-16-40J
18 340 410 GM-18-20J 18 680 750 GM-18-40J
20 380 450 GM-20-20J 20 760 830 GM-20-40J
22 420 490 GM-22-20J 22 840 910 GM-22-40J
24 460 530 GM-24-20J 24 920 990 GM-24-40J
26 500 570 GM-26-20J 26 1000 1070 GM-26-40J
28 540 610 GM-28-20J 28 1080 1150 GM-28-40J
30 580 650 GM-30-20J 30 1160 1230 GM-30-40J
32 620 690 GM-32-20J 32 1240 1310 GM-32-40J





Bracket size

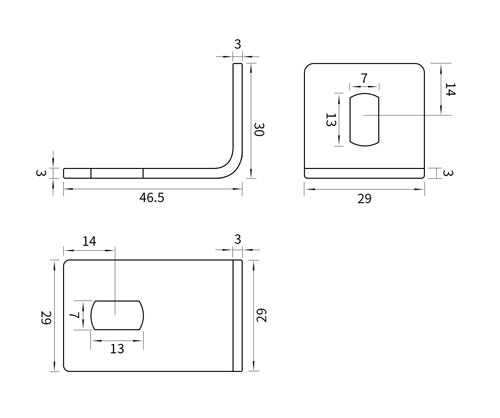

Img Name Dimensional drawing (unit: mm)
Side Mounting Bracket
(included in a set)
Cantilever Bracket
(additional option)
Integral Cantilever Bracket
(additional option)
