PR-6 Series(Smart Relay) is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start.
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp. : -20℃-55℃
Storage: -40℃-70℃
Protection : IP20
Programmable Relay PR-6 Series (Compact Range) Overview
PR-6 Series(Smart Relay) is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start. PR-6 Series is capable of replacing many of the discrete components(such as multiple timers, relays, contactors and counters etc) used in conventional systems, opening up a whole new range of possibilities for economical simple control solutions. PR-6 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse counting capabilities, merely incorporating digital IO, clock with calendar, counters , timers, and available in 120/240VAC or 12V/24VDC versions,Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software.
Note: The following function blocks cannot be applied to PR-6 series
Constant (Cursor key,panel-key, SMS input/output, SMS message input/output),Timer(Astronomical clock, stopwatch)
Analog (Analog MUX, PI Controller, Analog Ramp, Analog Math, Analog Math error detection,Analog filter,Max/Min,Average value)),Miscellaneous(Message texts, PWM, Modbus Read, Modbus Write, Memory Write, Memory Read,Word to bit,bit to word,Device reset,comport status,RH math),App(all are not available).
What can you expect from the xLogic PR-6 Series?
PR-6 series is specially designed and dedicated to minimize your simple control systems costs to the bottom, in detail, it can be used to replace many of the discrete components used in conventional systems, such as timer, counter, relay, etc, or simple control applications as building and parking lot lighting, access control, watering systems, pump control, ventilation systems, home automation and a wide field of applications demanding low cost to be a primary design issue, opening up a whole new range of possibilities for economical solutions, and contributed to xLogic’s versatile features.
| PR-6 Series CPU | |||||||||
| Model | Expansion | Supply volt | Inputs | Outputs | High-speed count | PWM | HMI | RTC | G . W(G) |

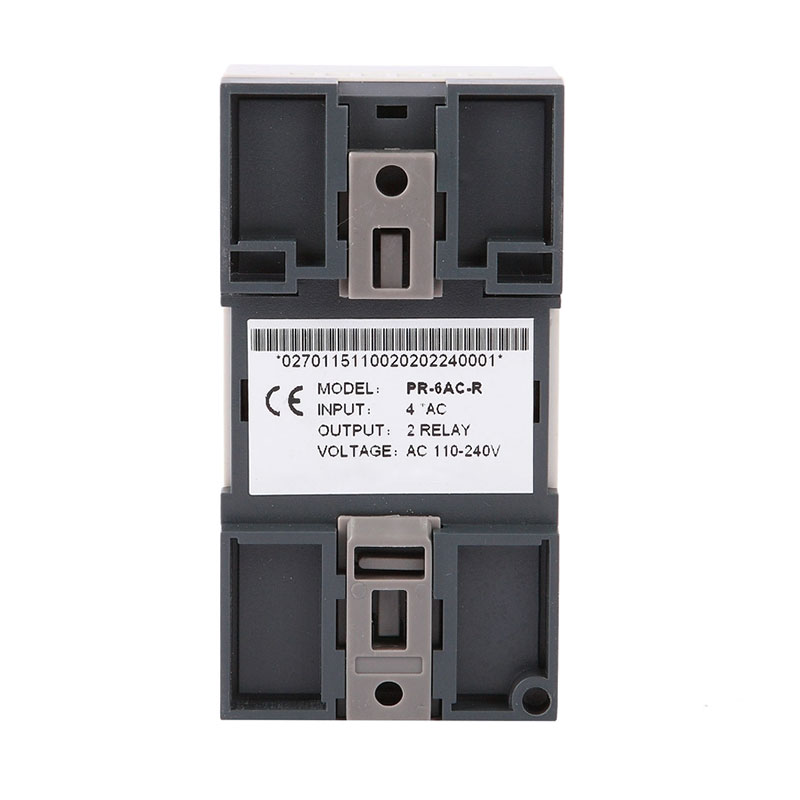

| PR-6AC-R | NO | AC 110～240V | 4 DI | 2 relays(10A) | NO | NO | NO | YES | 180 |
| PR-6DC-DA-R | NO | DC12V-24V | 4 DI(I1-I4) /4(0...10V) |
2 relays(10A) | NO | NO | NO | YES | 180 |
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp. : -20℃-55℃
Storage: -40℃-70℃
Protection : IP20
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Cycle time: typ. 0.6ms to 8.0ms
Dimensions : 48*90*64 (Unit, mm）
Certificate : CE,ROHS
Installation: 35mm-DIN rail or screw for installation
Expansion capacity : No
Password protection : 4-digit number password protection or disable program upload function
Communication interface : TTL interface , 1 Program/RS232 port
Communication protocol : Modbus RTU/ASCII , only can serve as slaves
Technical Index
| Power supply: | |
| Nominal voltage | AC110V-240V |
| Operating limits | AC85 - 265 V |
| The main frequency range | 47-63Hz |
| Max. absorbed power | 34 mA (85V AC) 26 mA (265V AC) |
| Isolation voltage | 1780V AC |
| Protection against polarity inversions | Yes |
| Input parameters: | |
| Input No | 4 ( I1-I4 ) |
| Digital input | 4 ( I1-I4 ) |
| Analogue input | None |
| Input voltage | AC110-240V |
| Input signal0 | AC0-40V；<0.03mA |
| Input signal1 | AC79-240V； >0.06mA |
| Input Response Time | Delay time at 0 to 1： 120V AC ：Typ. 50 ms 240V AC ：Typ. 30 ms Delay time at 1 to 0： 120V AC ：Typ. 90 ms 240V AC ：Typ.100 ms |
| Maximum counting frequency | Typ. 4Hz |
| Sensor type | Contact or 3-wire PNP |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Protection against polarity inversions | Yes |
| Output parameters: | |
| Output No. | 2 (Q1-Q2) |
| Output type | Relay output |
| Max. Allowable Power Force | CE: 10A,250V AC/DC30V |
| Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
| Mechanical life | 107 Operations at No Load condition |
| Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
| Built-in protections | Against short-circuits: None Against overvoltages and overloads: None |
| Switch frequency: | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: | |
| Weight | Approx.180g |
Installation Dimensions
Wiring Diagram
Input&Output
