◆70 ready-to use functions integrated-no additional devices such as operating hours counter required.

◆Extremely large program capacity:up to 1024 functions possible.

◆12 digital inputs(incl 6AI with 12/24V DC)and 6 digital outputs on board.

◆Flexibly expandable up to 140DI,134DO,72AI,and 32AO.

◆Display of message texts,actual and set-point values and direct modification of the values on the display(not on pure variants).

FEATURES

Timers : 1024

Counters : 1024

Function Blocks : 1024

Operation temp. : -20℃-55℃

Storage :-40℃-70℃

Protection : IP20(Non-waterproof)

SEND US YOUR MESSAGE
Video
Product Description



Highlight of PR-18 Series



◆70 ready-to use functions integrated-no additional devices such as operating hours counter required.

◆Extremely large program capacity:up to 1024 functions possible.

◆12 digital inputs(incl 6AI with 12/24V DC)and 6 digital outputs on board.

◆Flexibly expandable up to 140DI,134DO,72AI,and 32AO.

◆Display of message texts,actual and set-point values and direct modification of the values on the display(not on pure variants).

◆Integrated data retentivity-ensures backup of the current values in the event of a power failure.

◆Customizable Start-up page/screen.

◆Bool function,multiple timers,counters,PWM,PI controller,Ramp.Analog math supported.

◆Can be modularly expanded up to 274 I/Os.

◆230V units can be expanded with analog modules.

◆Data-logging:Data from the production process can be saves in SD card of the external accessory called ELC-MEMORY to either read it with a PC or evaluate it from the SD card at the workstation.

◆Extremely simple software

◆Display of up to 128 messages.

◆Multiple kinds of registers can be accessed.

◆Parameters setting menu in LCD panel.

◆Parameters can be modified in the alarming message.

◆Modbus RTU/ASCII protocol supported.

◆Retentive memory capability.

◆Powerful communication capability(1RS232 port,1 RS485 port and 1 expansion port)

◆Password protection.

◆It's optional for xLogic to act as salve or master in certain Modbus communication network.

◆Backup at Real Time Clock(RTC) at 25 ℃: 20days.

◆Communicate with third party device which supports Modbus network.





Technical Specifications



GENERAL SPECIFICATIONS

Timers : 1024

Counters : 1024

Function Blocks : 1024

Operation temp. : -20℃-55℃

Storage :-40℃-70℃

Protection : IP20(Non-waterproof)

RTC accuracy : MAX ±2S/day

RTC Backup at 25 °C : 20 days

Program and settings Backup :10 years

Data Power-off retentivity : 10 years

Modify parameters via keypad LCD: yes

Dimensions : 95*90*55(Unit:mm)

Certificate : CE

Installation : 35-DIN rail or screw for installation

Expansion capacity: 16 modules (PR-E-16)

Password protection : 4-digit number password protection or disable program upload function

Communication interface : TTL interface , 1 RS232 port & 1 RS485 port

Communication protocol : Modbus RTU/ASCII





Technical Index



Power supply:
Nominal voltage AC110V-240V
Operating limits AC85 - 265 V
The main frequency range 47-63Hz
Max. absorbed power 49mA (85V ac) ; 37mA (265V ac)
Isolation voltage 1780V AC
Protection against polarity inversions Yes
Input parameters:
Input No 12 ( I1-IC)
Digital input 12 ( I1-IC)
Analogue input None
Input voltage AC110-240V
Input signal0 AC0-40V;<0.03mA
Input signal1 AC79-240V; >0.06mA
Input Response Time Delay time at 0 to 1:
120V AC :Typ. 50 ms
240V AC :Typ. 30 ms
Delay time at 1 to 0:
120V AC :Typ. 90 ms
240V AC :Typ.100 ms
Maximum counting frequency Typ. 4Hz
Sensor type Contact or 3-wire PNP
Isolation between power supply and inputs None
Isolation between inputs None
Protection against polarity inversions Yes
Output parameters:
Output No. 6 (Q1-Q6)
Output type Relay output
Max. Allowable Power Force(Resistive) CE: 10A,250V AC/DC30V
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time : 15 mSec. Max.
Release Time : 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Switch frequency:
Mechanism 10Hz
Resistor/light load 2Hz
Sensitive load 0.5Hz
Other parameters:
Weight Approx.400g

Program language

FBD & Ladder





Model Selector



PR-18 Series CPU
Model Supply volt Inputs Outputs High-speed count PWM HMI RTC G.W(g)
PR-18AC-R AC110~
240V
12 Digital 6relays
(10A)
None NO YES YES 400g
PR-18DC-DA-R DC12V-DC24V 6 digital
/analog
+6 digital
6 relays
(10A)
4 routes NO YES YES 400g

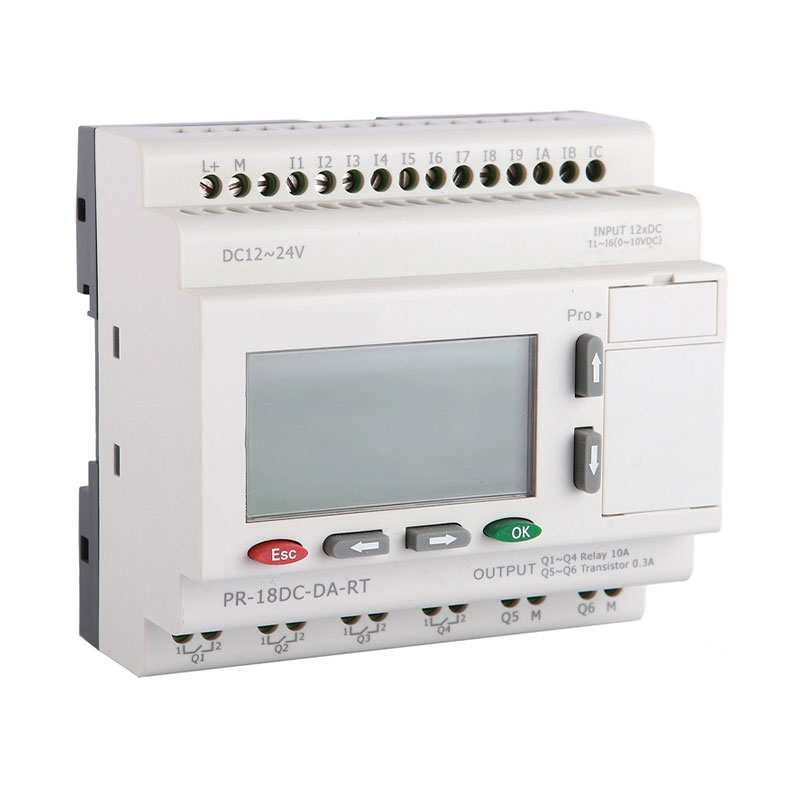

PR-18DC-DA-RT DC12V-DC24V 6 digital
/analog
+6 digital
4 relays
(10A)+2transistor(0.3A)
4 routes YES YES YES 400g





Dimensions

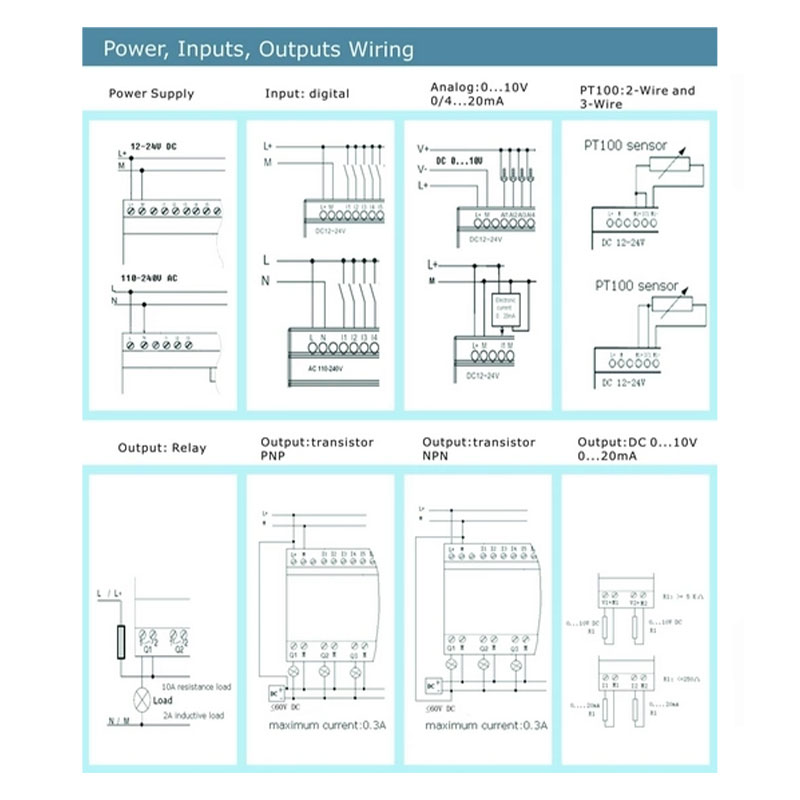

Wiring





Input & Output
