Economy PR-12 range is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start.
Timers : 64
Counters : 64
Function Blocks:64
Operation temp. :-20℃-55℃
Storage :-40℃-70℃
Protection: IP20(Non-waterproof)

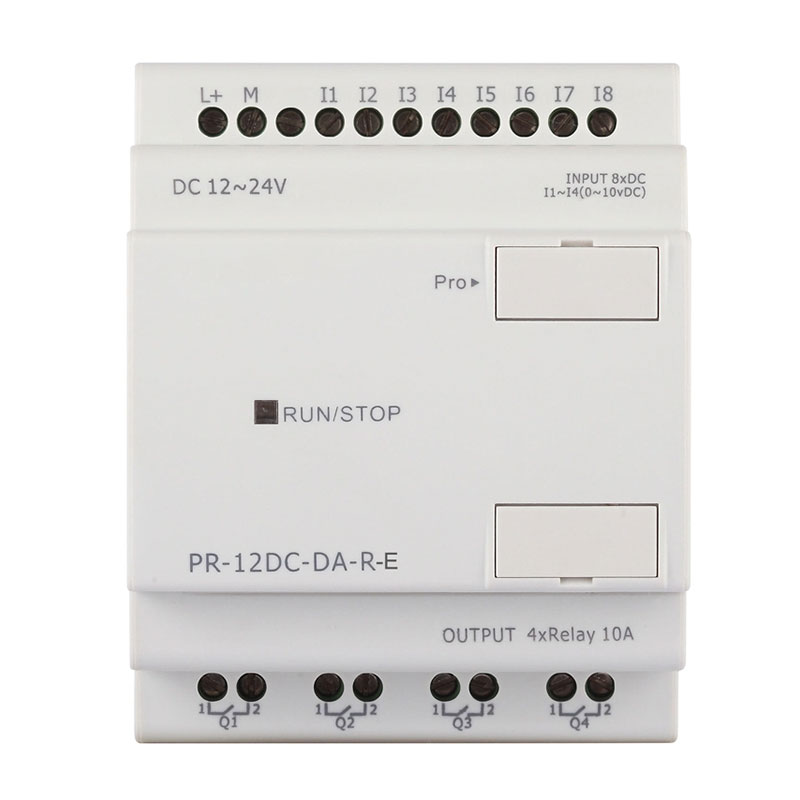

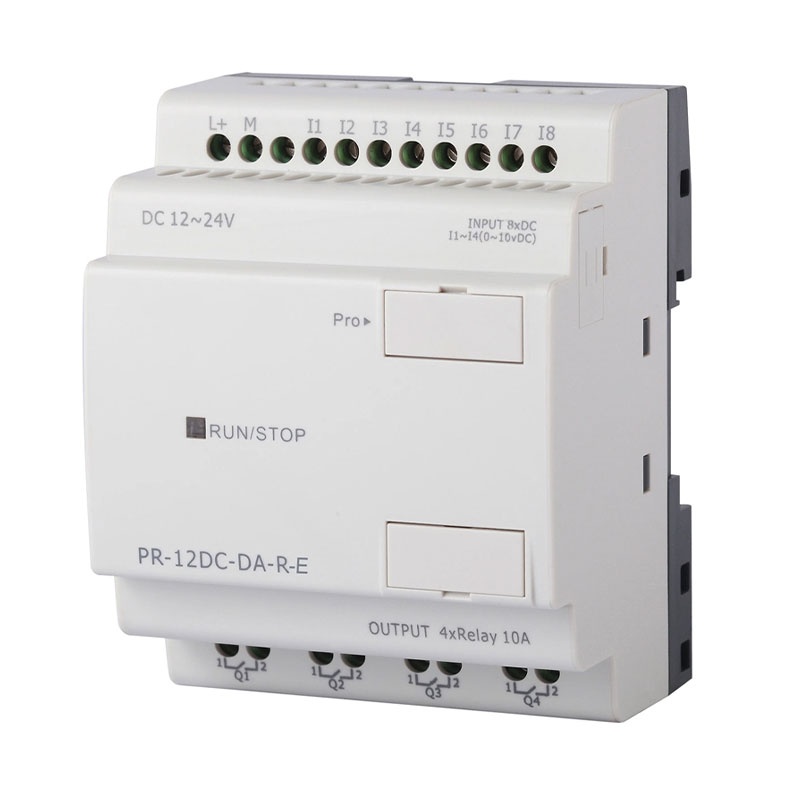

Programmable Relay PR-12 Series (Economic Range) Overview
Economy PR-12 range is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start. Economy PR-12 Series is capable of replacing many of the discrete components (such as multiple timers, relays, contactors and counters etc) used in conventional systems, opening up a whole new range of possibilities for economical simple control solutions. Economy PR-12 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse counting capabilities, but analog inputs also are available, clock with calendar, counters , timers, and available in 120/240VAC or 12V/24VDC versions, Easy to configure with drag-and-drop function blocksusing FREE xLogicSoft software.
Note: The following function blocks cannot be applied to Economy PR-12 series
Constant (Cursor key,panel-key, SMS input/output, SMS message input/output),Timer(Astronomical clock, stopwatch) Analog (Analog MUX, PI Controller, Analog Ramp, Analog Math, Analog Math error detection,Analog filter, Max/Min, Average value)), Miscellaneous(Message texts, PWM, Modbus Read, Modbus Write, Memory Write, Memory Read, Word to bit,bit to word,Device reset,comport status, RH math), App(all are not available).
| Economy PR-12 Series CPU | ||||||
| Model | Supply volt | Inputs | Outputs | HMI | RTC | G.W(G) |
| PR-12AC-R-E | AV110-AC240V | 8 DI | 4 relays(10A) | NO | YES | 300 |
| PR-12DC-DA-R-E | DC12V-DC24V | 4 DI/AI(I1-I4) + 4 DI (I5-I8) | 4 relays(10A) | NO | YES | 300 |
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks:64
Operation temp. :-20℃-55℃
Storage :-40℃-70℃
Protection: IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Dimensions: 72*90*58 (Unit, mm）
Certificate: CE,C-UL,ROSH,REACH

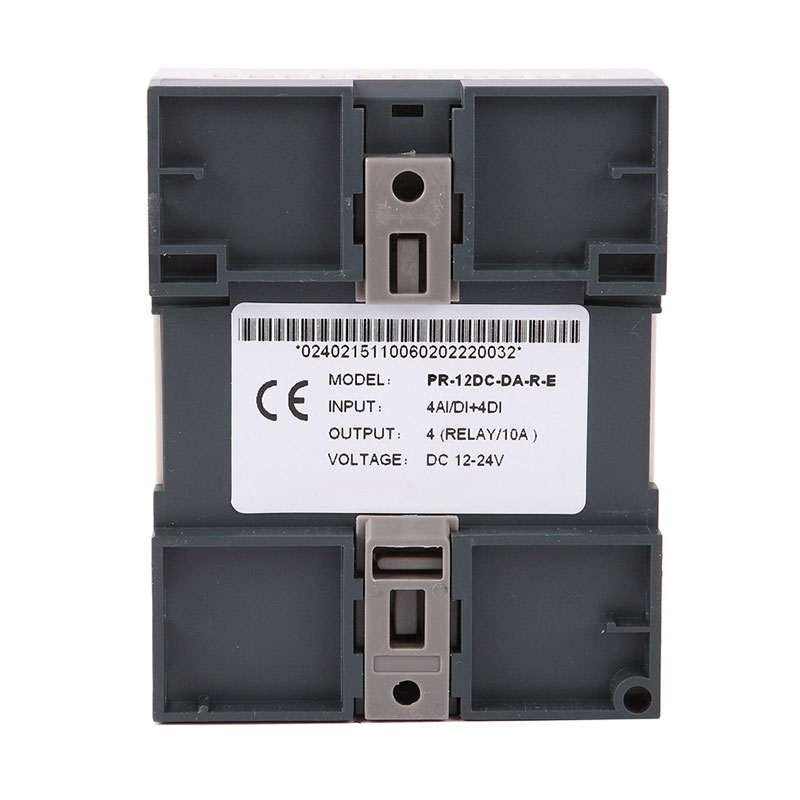

Installation: 35mm-DIN rail or screw for installation
Modify parameters via keypad LCD：no
Password protection : 4-digit number password protection or disable program upload function

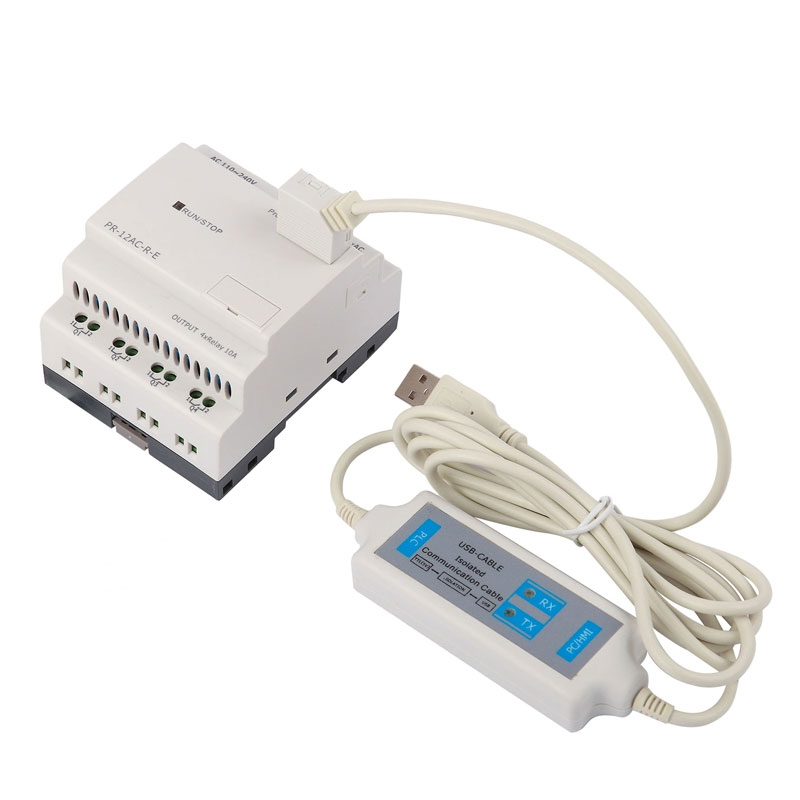

Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII
Technical Index
| Power supply: | |
| Nominal voltage | DC 12-24V |
| Operating limits | DC 10.8-28.8V |
| Immunity from micro power cuts | Typ.5 ms |
| Max. Startup current | Max. 0.25A |
| Max. absorbed power | 3.2 W (10.8V dc) ; 3.8 W (28.8V dc) |
| Protection against polarity inversions | Yes |
| Input parameters: | |
| Input No | 8 ( I1-I8 ) |
| Digital input | 8 ( I1-I8 ) |
| Analogue input | 4 ( I1-I4)(0..10V DC) |
| Digital inputs( I5-I8 ) | |
| Input voltage | DC0-28.8V |
| Input signal0 | < 5V DC; <1mA |
| Input signal1 | > 8 V DC;>1.7mA |
| Input current | 2.3mA @ 10.8V dc 2.6mA @ 12.0 V dc 5.2 mA @ 24 V dc 6.3 mA @ 28.8 V dc |
| Response time | 0 to 1 ：<1 ms ；1 to 0 ：<1 ms |
| Maximum counting frequency | Typ.：4 HZ |
| Sensor type | Contact or 3-wire PNP |
| Input type | Resistive |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Inputs used as digital inputs( I1-I4 ) | |
| Input voltage | DC0-28.8V |
| Input signal0 | < 5V DC;<0.1mA |
| Input signal1 | > 8 V DC;>0.3mA |
| Input current | 0.4mA @ 10.8V dc 0.5mA @ 12.0 V dc 1.2mA @ 24 V dc 1.5mA @ 28.8 V dc |
| Response time | 0 to 1 ：Typ. 1.5 ms ；1 to 0 ：Typ. 1.5 ms |
| Maximum counting frequency | Typ.：4 HZ |
| Sensor type | Contact or 3-wire PNP |
| Input type | Resistive |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Inputs used as analog inputs( I1-I4 ) | |
| Measurement range | DC 0---10V |
| Input impedance | Min, 24KΩ ; Max. 72KΩ |
| Input voltage | 28.8 V DC max |
| Resolution | 9bit ,0.015V |
| Accuracy at 25 °C | ± (Max.0.03)V |
| Accuracy at 55 °C | ± (Max.0.06)V |
| Isolation between analog channel and power supply | None |
| Cable length | 10 m max. shielded and twisted |
| Output parameters: | |
| Output No. | 4 (Q1-Q4) |
| Output type | Relay output |
| Max. Allowable Power Force(Resistive) | CE: 10A,250V AC/DC30V UL/CUL: 10A,250V AC; 5A,DC28V |
| Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
| Mechanical life | 107 Operations at No Load condition |
| Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
| Built-in protections | Against short-circuits: None Against overvoltages and overloads: None |
| Switch frequency: | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: | |
| Weight | Approx.300g |

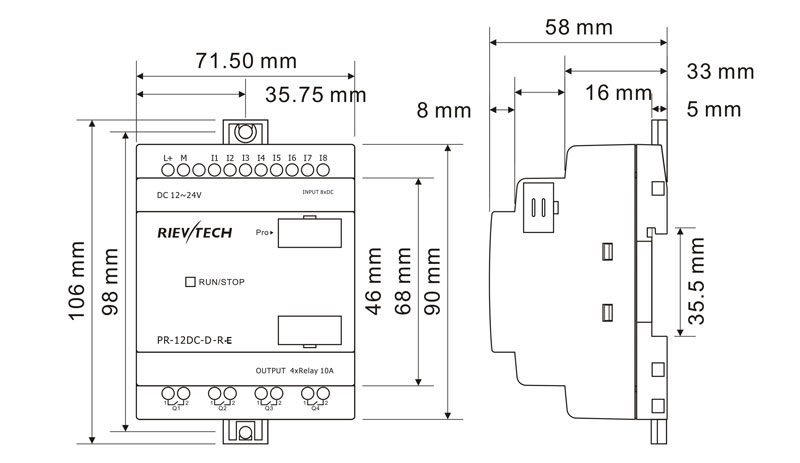

Dimensions

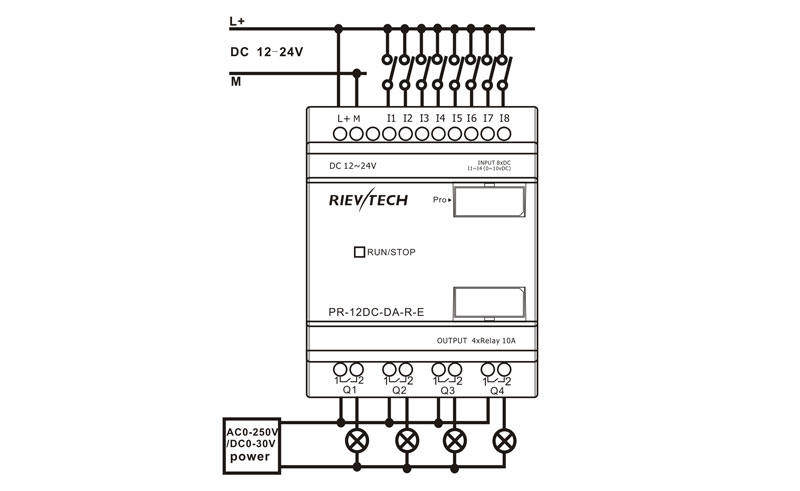

Wiring
Input(digital & DC0...10V) & Output
