Economy PR-12 range is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start.
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp.: -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
Programmable Relay PR-12 Series (Economic Range) Overview
Economy PR-12 range is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start. Economy PR-12 Series is capable of replacing many of the discrete components (such as multiple timers, relays, contactors and counters etc) used in conventional systems, opening up a whole new range of possibilities for economical simple control solutions. Economy PR-12 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse counting capabilities, but analog inputs also are available, clock with calendar, counters , timers, and available in 120/240VAC or 12V/24VDC versions,Easy to configure with drag-and-drop function blocksusing FREE xLogicSoft software.
Note: The following function blocks cannot be applied to Economy PR-12 series
Constant (Cursor key,panel-Key， SMS input/output, SMS message input/output),Timer(Astronomical clock, stopwatch) Analog (Analog MUX, PI Controller, Analog Ramp, Analog Math, Analog Math error detection,Analog filter,Max/Min, Average value)),Miscellaneous(Message texts, PWM, Modbus Read, Modbus Write, Memory Write, Memory Read, Word to bit,bit to word,Device reset,comport status,RH math),App(all are not available).
| Economy PR-12 Series CPU | ||||||
| Model | Supply volt | Inputs | Outputs | HMI | RTC | G.W(G) |
| PR-12AC-R-E | AV110-AC240V | 8 DI | 4 relays(10A) | NO | YES | 300 |
| PR-12DC-DA-R-E | DC12V-DC24V | 4 DI/AI(I1-I4) + 4 DI (I5-I8) | 4 relays(10A) | NO | YES | 300 |
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp.: -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Dimensions : 72*90*58 (Unit, mm）
Certificate : CE
Installation : DIN rail or screw for installation
Modify parameters via keypad LCD：no
Password protection : 4-digit number password protection or disable program upload function
Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII
Technical Index
| Power supply | |
| Nominal voltage | AC110V-240V |
| Operating limits | AC85 - 265 V |
| The main frequency range | 47-63Hz |
| Max. absorbed power | 38mA (85V AC); 30mA (265V AC) |
| Isolation voltage | 1780V AC |
| Protection against polarity inversions | Yes |
| Input parameters | |
| Input No | 8 ( I1-I8 ) |
| Digital input | 8 ( I1-I8 ) |
| Analogue input | None |
| Input voltage | AC110-240V |
| Input signal0 | AC0-40V；<0.03mA |
| Input signal1 | AC79-240V； >0.06mA |
| Input Response Time | Delay time at 0 to 1： 120V AC ：Typ. 50 ms 240V AC ：Typ. 30 ms Delay time at 1 to 0： 120V AC ：Typ. 90 ms 240V AC ：Typ.100 ms |
| Maximum counting frequency | Typ. 4Hz |
| Sensor type | Contact or 3-wire PNP |
| Isolation between power supply and inputs | None |
| Isolation between inputs | None |
| Protection against polarity inversions | Yes |
| Output parameters | |
| Output No. | 4 (Q1-Q4) |
| Output type | Relay output |
| Max. Allowable Power Force(Resistive) | CE: 10A,250V AC/DC30V |
| Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
| Mechanical life | 107 Operations at No Load condition |
| Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
| Built-in protections | Against short-circuits: None Against overvoltages and overloads: None |
| Switch frequency | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: | |
| Weight | Approx.300g |
Dimensions

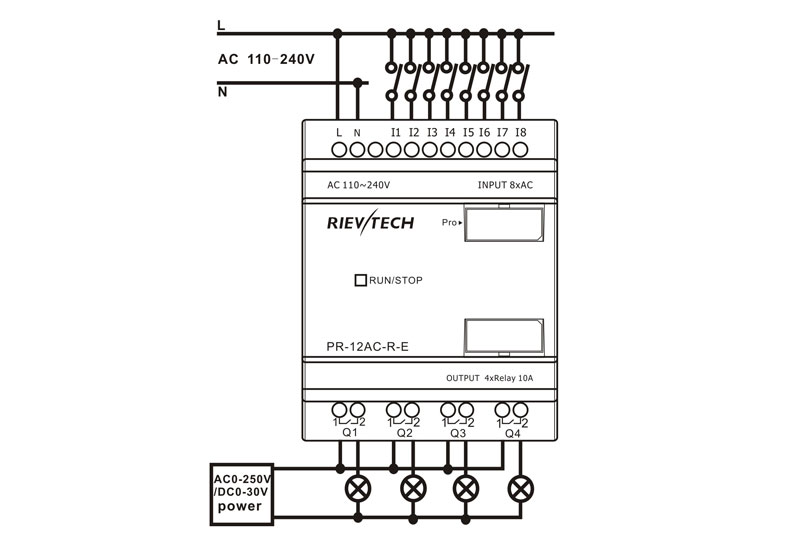

Wiring
Input& Output
.png)
