G65 Photoelectric Switch

The G65 Fast Sensing Photoelectric Sensor Switch NPN PNP NO NC is typically used to detect the presence, position and movement of an object. They have a simple operating principle, are easy to install, and are characterized by fast response and high accuracy.

FEATURES
SEND US YOUR MESSAGE
Video
Description

Throuht-beam type

Through-beam bype photoelectric switch is designed that via the light beam between opposite-mounted transmitter and receiver, the object passing through these two devices will interrupt the light beam and start the receiver. (Fig.R1)



Diffuse type

Diffuse reflection type photoelectric switch integrates the transmitter and the reciver. Light reflected by the photoelectric switch is reflected back to the receiver by the detected object. (Fig.R2)



Retroreflective type

Retroreflective type photoelectric switch also integrates the transmitter and the receiver, Its difference from other models is that reflecotr is used to relfect light to the photoelectric switch. Though the object between the photoelectric switch and reflector can reflect the light, it is much less efficient than the reflector so as to cut down reflected light. (Fig.R3)



Convergence reflection type (condensation type)

The working principle of convergence reflection type photoswitch is similar to that of direct reflection type one, while its projector and light receiver focus on boject distance, only when the object presents to the focus can the photoswitch actuate.(Fig.R4)

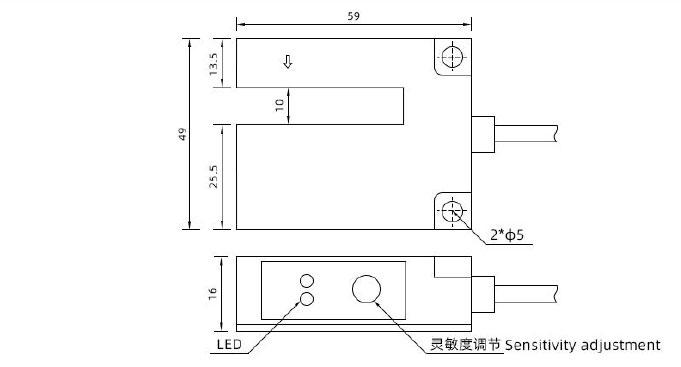

Outward appearance code



Model G65
Dimension
Sense distance 1mm
Through-beam type DC10~30VDC NPN NO G65-3E01NA
NC G65-3E01NB
NO+NC G65-3E01BC
NPN NO G65-3E01PA
NC G65-3E01PB
NO+NC G65-3E01PC
Output voltage peak DC:200mA、AC:300mA
Consumption current DC<15mA、AC<10mA
Standard detected object DC<2ms、AC<20ms
Repeatability 2°~10°
Response frequency Transparent oropaque body
Ambient temperature -25℃ - +55℃
Ambient brightness Sunlight below 10000LX, incandescent lamp below 30000LX
Shell material ABS plastic
Protection grade IP54





Application illustration or photoelectric switch
